Signature Tools & Products / Devices

Below you will find options of various products that you can use alongside Link2Feed as well as some tips and information on installation/set-up.

Link2Feed is unable to support issues with barcode scanners these are some options that are available however we cannot offer further support on our end for any issues with the scanners directly.

This article covers the following topics:

• Barcode Scanners
• Signature Tools & Tips
  • Sign on Screen Tip
  • Signature Tools
    • eSignature Device - Slimline
    • eSignature Devices - ScriptTouch ST1500/1550

Barcode Scanners

Here is a list of barcode scanners that are possible options to utilize with Link2Feed.

1. WoneNice USB Laser Barcode Scanner
2. NETUM Wireless Barcode Scanner
3. Laser Wired Barcode Scanner
4. Handheld USB Barcode Scanner
5. Tera Barcode Scanner

Signature Tools & Tips

Currently, eSignature is available for Standard and CSFP programs only; Generic programs cannot be set up for eSignature at this time.

Sign on Screen Tip

If you are using a tablet (e.g. Chromebook) to perform client intake, open up a Google Chrome web browser page.

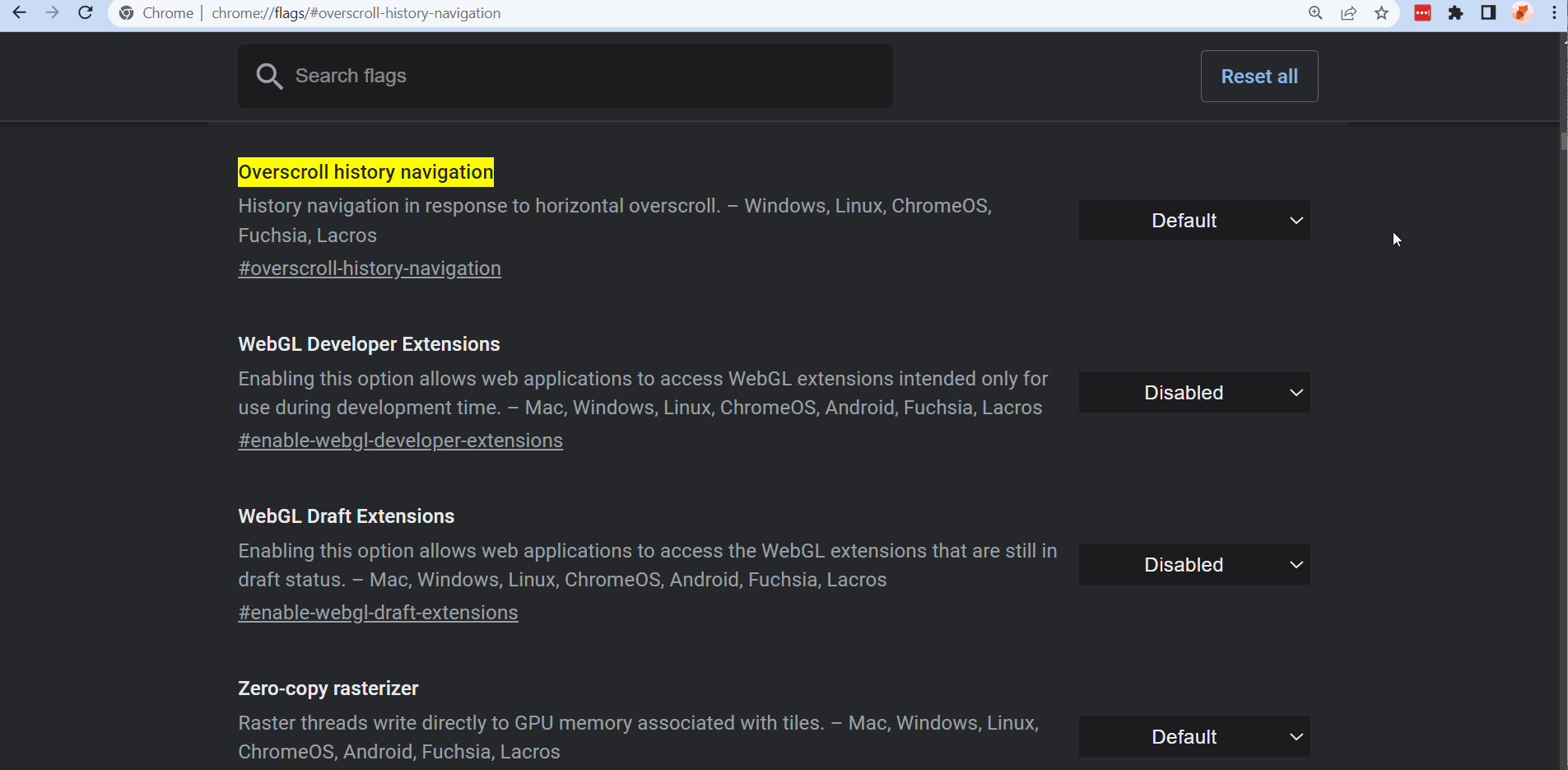

1. Type chrome://flags/#overscroll-history-navigation in your Google Chrome browser.
2. You should see Overscroll history navigation at the top of the page.
3. Change the Enabled option in the drop-down list to Disabled.
4. Go to the bottom of the page and click on Relaunch, to restart your browser to save your changes.
5. Once you log into Link2Feed, the changes will be effective.

This will help to prevent the screen from swiping and navigating back to the previous page while the user is signing for their visit.

Signature Tools

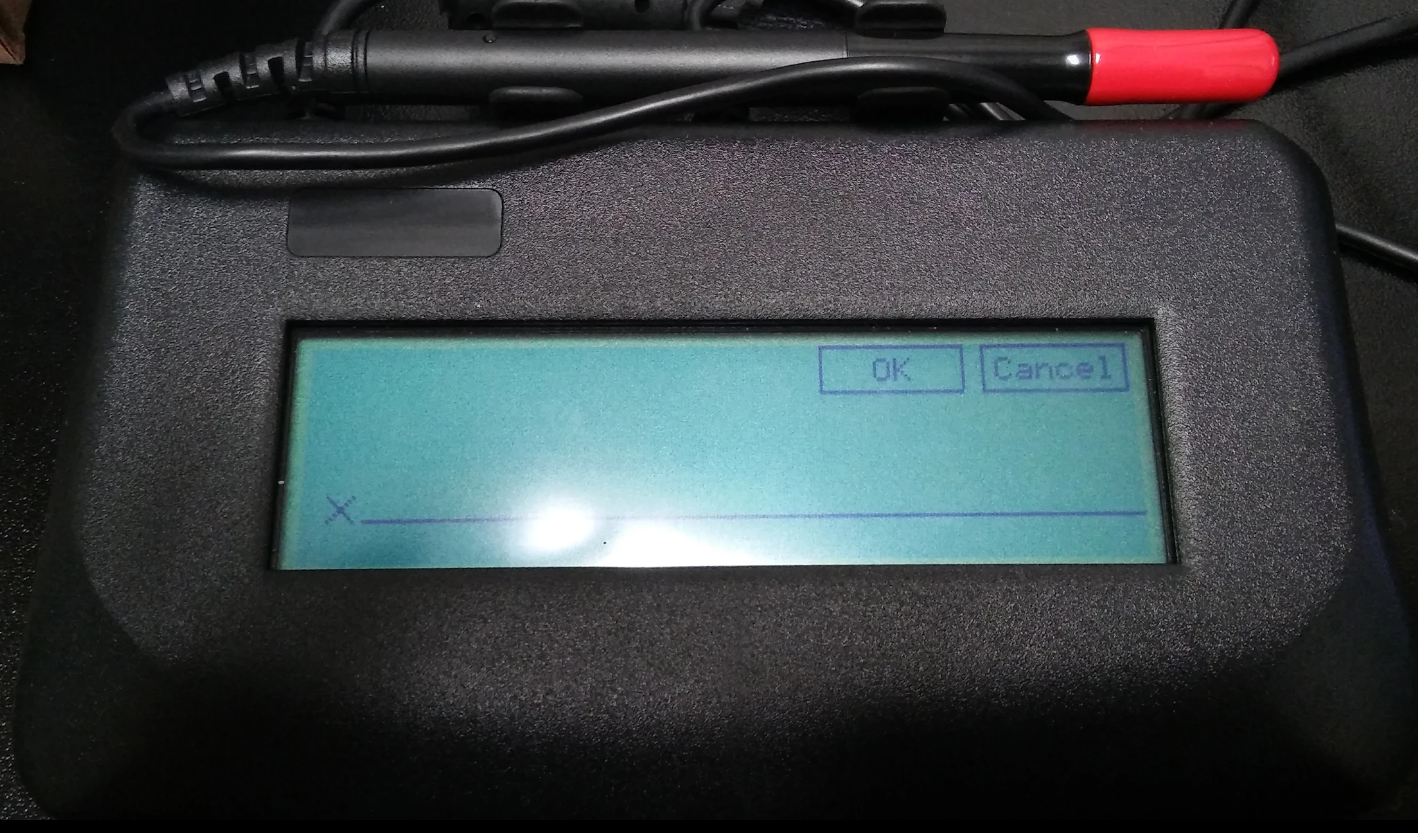

eSignature Device - Slimline

Tip!
EasyScript: easier to set up (you can just plug it into your device without any installation steps), compatible with Chromebooks.
ProScript: Requires installation steps, is NOT compatible with Chromebooks

Name	Model	Script	Description of Pad	Warranty Period
Slimline 1x5	ST1476	EasyScript	No Display	2-Year
Compact LCD	ST1550	ProScript	LCD, great portability, backlit	3-Year
Desktop LCD	ST1501B	EasyScript	LCD, great for countertops, backlit	3-Year
Slimline LCD	ST1571	EasyScript	LCD, Slim form factor, backlit	3-Year

eSignature Devices - ScriptTouch ST1500/1550

ST1500 is no longer available for purchase as of 2019. For other eSignature device options please see the section above

Installation

Go to the link here to install your software driver.

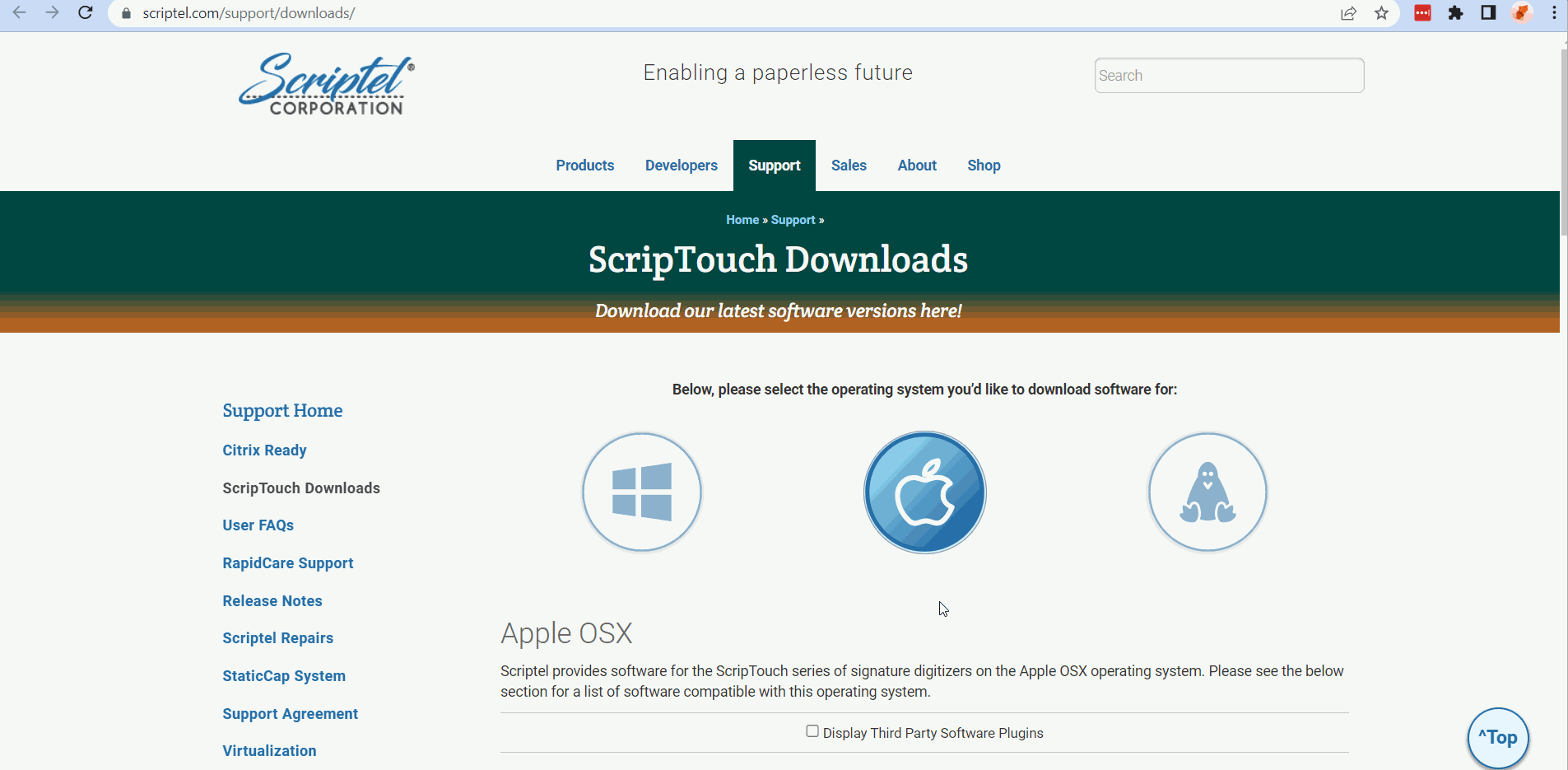

1. Click on your device's operating system from the three options shown towards the top.
2. Scroll down to the bottom to install the ScripTouch OmniScript.
3. Click on Download Now.

4. After the download has been completed, click on the downloaded driver. This may be in your Downloads folder or at the bottom of your browser window depending on your operating system.
5. The ScripTouch OmniScript Setup screen will appear.

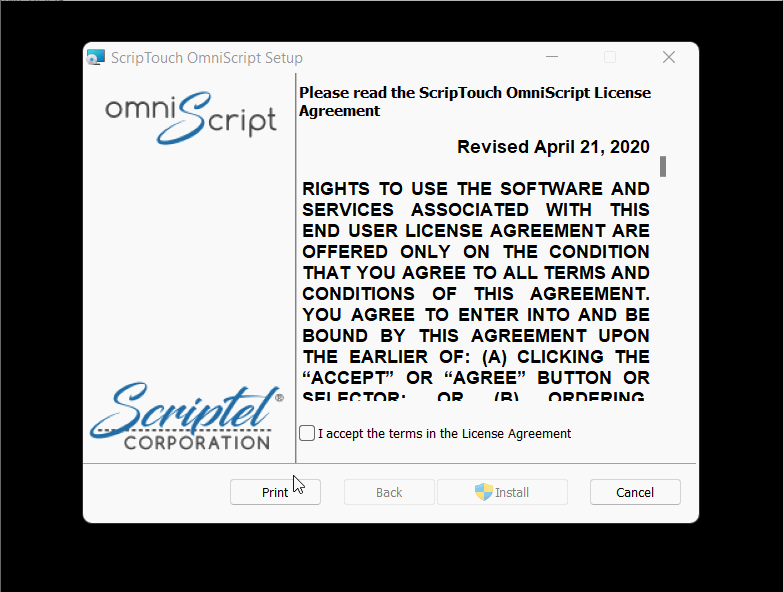

6. Please read the ScriptTouch OmniScript License Agreement: Read the license agreement then check off the box next to I accept the terms in the License Agreement then select Install.
7. You may see a pop-up appear asking Do you want to allow this app to make changes to your device? A file will be listed there, select Yes to proceed.
8. A black window (Command Prompt) will appear briefly.
9. Click Finish on the final screen.



SSL A notification may appear on your screen trying to stop the signature pad from connecting with recording eSignatures in Link2Feed. Accept Link2Feed as an exception once and the notification won't appear again.

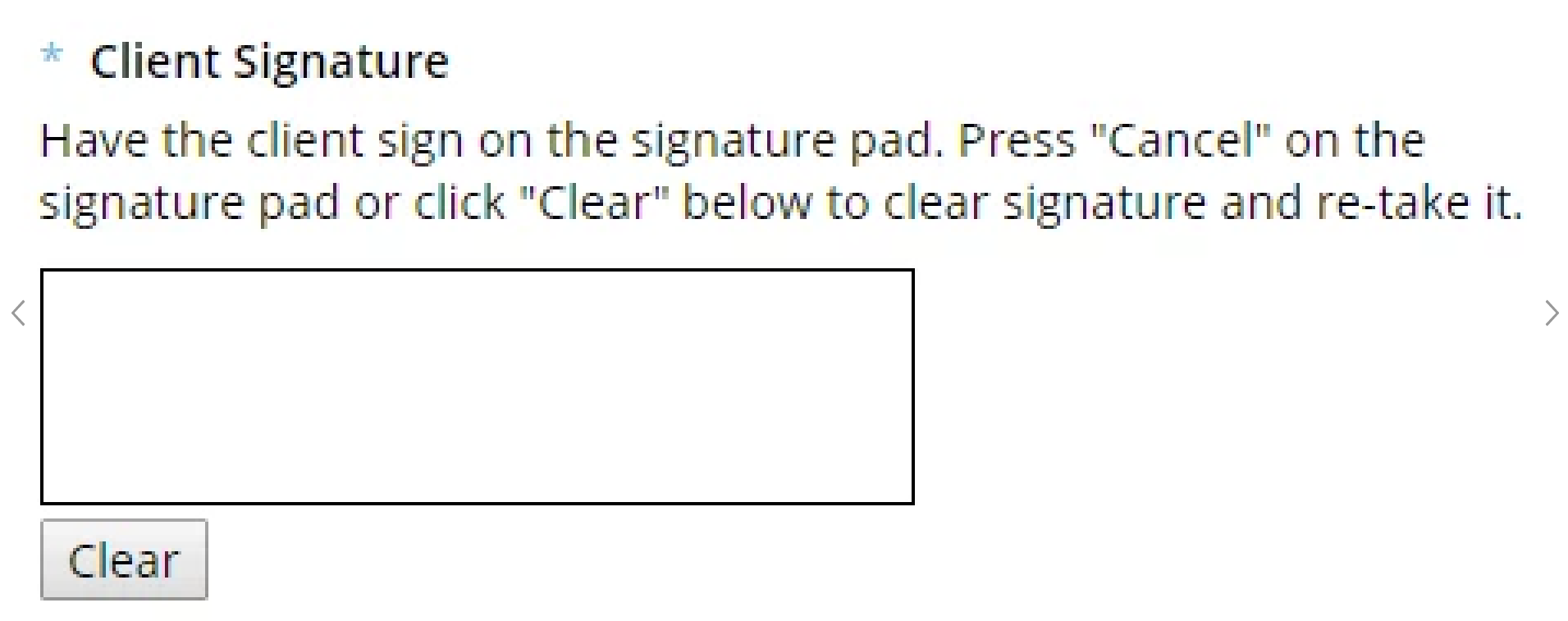

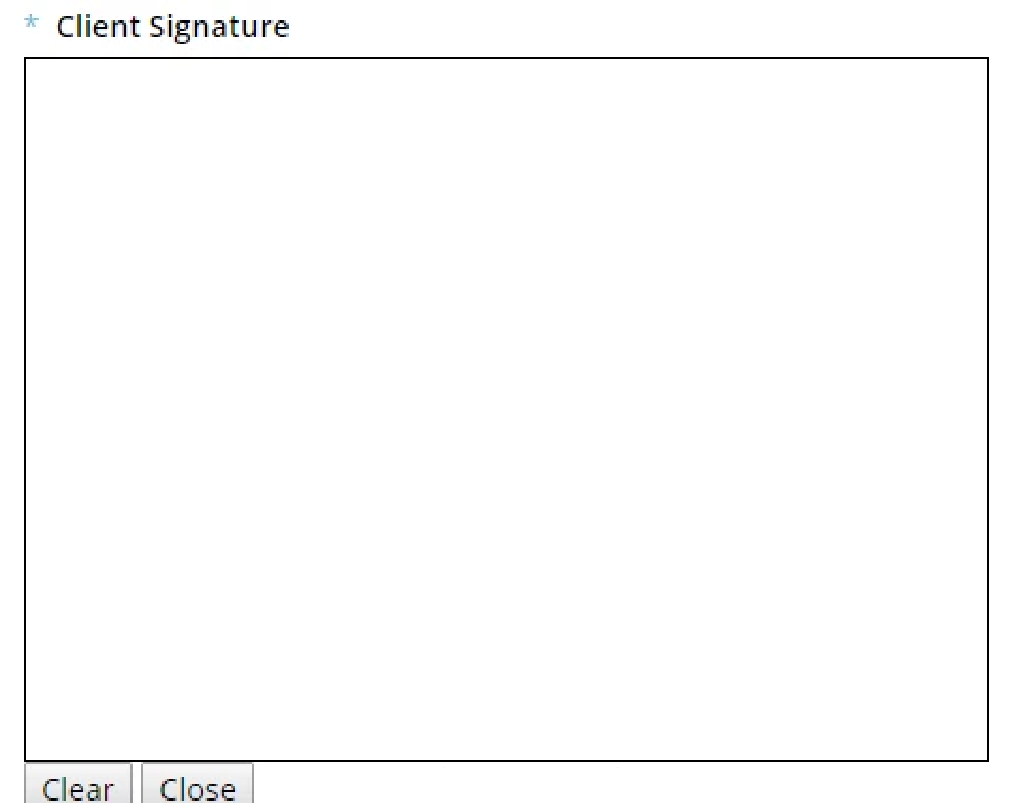

You will know your device is connected when the signature area shrinks to the same dimensions as the eSignature device. See below for the difference.

Not using eSignature Device	Using eSignature Device

Configuration

Do not have your Link2Feed portal open while configuring your eSignature device. Make sure the system isn't open when you go to the site below.

You can make changes to the appearance of the screen (e.g. removing the OK or Cancel button) by going here.

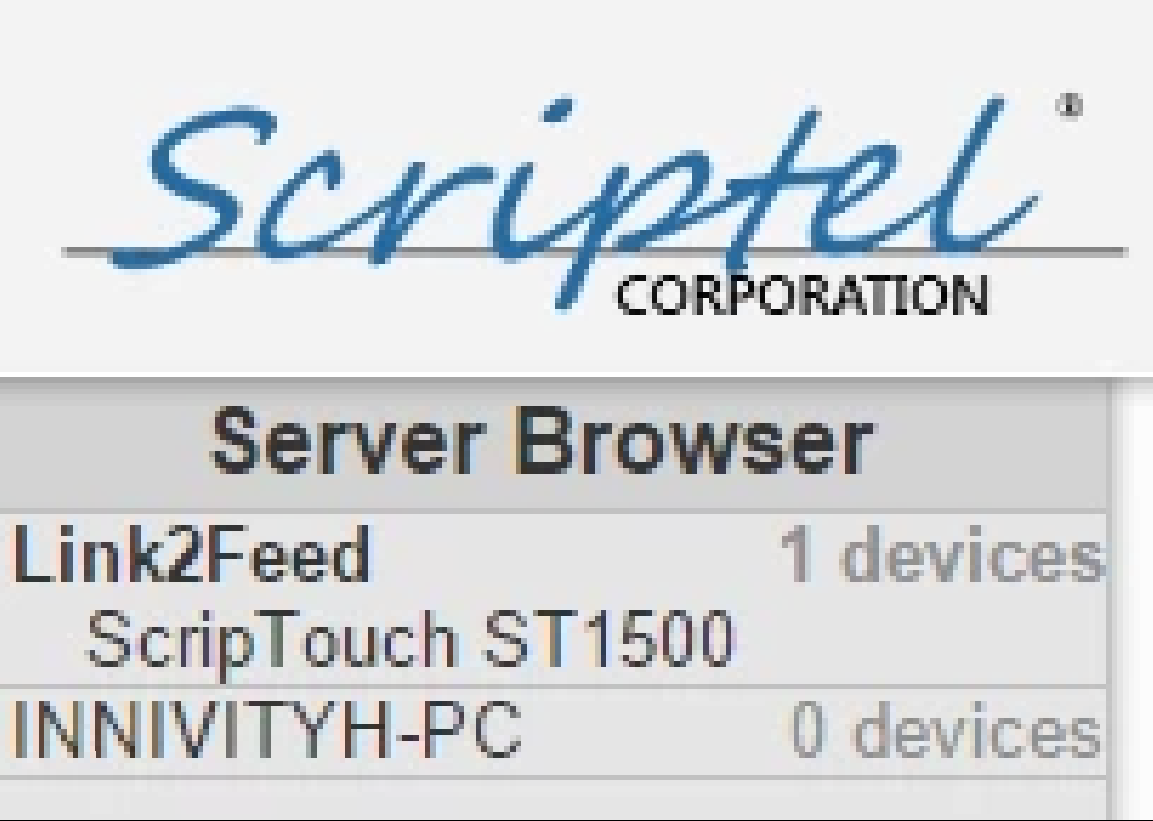

Click on the name of your eSignature device underneath the Server Browser section. (i.e. ScripTouch ST1500)

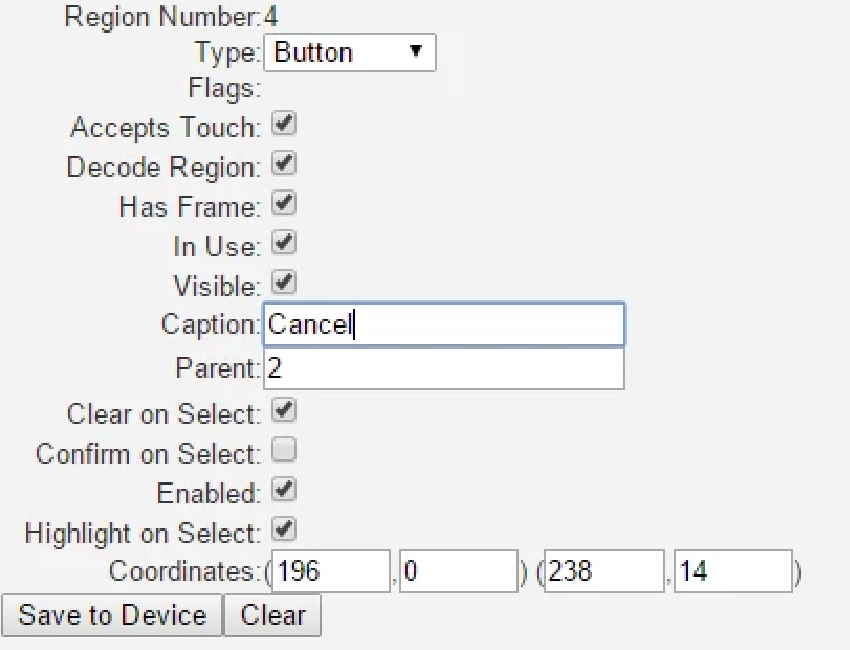

The following image displays what your screen should currently look like. Click on the last tab, Regions



Region Number 3 controls the OK button. Region Number 4 controls the Cancel button.

• Has Frame: put a border around the text.
• Visible: hide the button's visibility.
• Caption: text of what you want the button to say.
• Clear on Select: when the button is pressed, erase the signature.
• Confirm on Select: when the button is pressed, accept the signature.
• Highlight on Select: highlight the button when selected.
• Coordinates: where on the screen should the button be located.

Click on Save to Device to save your changes.

Default Setup:

• Both OK and Cancel buttons are enabled
• Clicking on the OK button on the pad will confirm the signature has been sent to the screen. The pad will be blank again, awaiting the next signature.
• Clicking on the Cancel button on the pad will clear the signature on the pad and the signature on the screen so the client can try again.

Why does the signature pad work on some pages but not others? When using the ScripTouch ST1500, it is important to only have one Link2Feed signature page open. If you have more than one signature page open, the ScripTouch will detect the first signature area that was opened (NOT the page that is currently open). This can cause it to appear to be working on some pages but not others. If this happens, you will need to navigate away from the page that is working and reload the page that you want the signature to appear on.
